Spiking Time Tiling Coefficient - Pairwise correlations between spike trains

!pip install elephant
!pip install networkx
!pip install mne
!pip install mne_connectivity

import neo
import quantities as pq
from elephant.spike_train_correlation import spike_time_tiling_coefficient

import networkx as nx
from mne.viz import circular_layout
from mne_connectivity.viz import plot_connectivity_circle

import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
from itertools import chain

from scipy.stats import pearsonr

well_data.head()

well_data["Electrode"].unique()

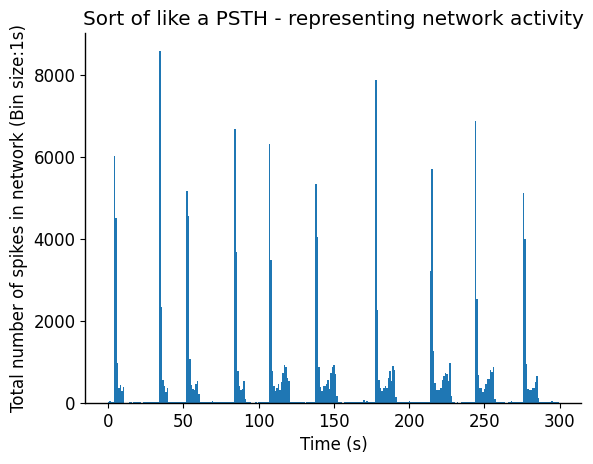

plt.hist(well_data["Time (s)"], bins=300);
sns.despine()
plt.xlabel("Time (s)")
plt.ylabel("Total number of spikes in network (Bin size:1s)")
plt.title("Sort of like a PSTH - representing network activity")

channel_ids = [i for j in range(1, 9) for i in range(j * 10 + 1, j * 10 + 9)]
'''
The above produces the following:
  [11, 12, 13, 14, 15, 16, 17, 18,
  21, 22, 23, 24, 25, 26, 27, 28,
  31, 32, 33, 34, 35, 36, 37, 38,
  41, 42, 43, 44, 45, 46, 47, 48,
  51, 52, 53, 54, 55, 56, 57, 58,
  61, 62, 63, 64, 65, 66, 67, 68,
  71, 72, 73, 74, 75, 76, 77, 78,
  81, 82, 83, 84, 85, 86, 87, 88]
'''

# Sort data frame containing mixed-bag of electrode and spike times based on channel name
def generate_raster(well_data, duration, channel_ids):
  '''
  well_data: Data frame in the format seen above
  duration: Length of recording in seconds (in this case 300 seconds)
  channel_ids: Name of all channels in the format seen in the data frame "channel" column
  '''
  raster = []
  # Loop through each channel regardless of activity
  for channel in channel_ids:
    # If the channel is found in my data (i.e., it had at least 1 spike)
    if int(channel) in well_data["Channel"].to_list():
      # Find spike times associated with that channel
      spiketrain = well_data.loc[well_data["Channel"]==int(channel), well_data.columns.str.contains("Time")].reset_index(drop=True)
      # Convert spike times that occur before the end of the recording (i.e., duration) to an array
      spiketrain = spiketrain.to_numpy().flatten()[spiketrain.to_numpy().flatten() <= duration]
      # Store array
      raster.append(spiketrain)
    # If the channel is not found in my data, I still want to store that it was empty
    else:
      raster.append([])
  return raster

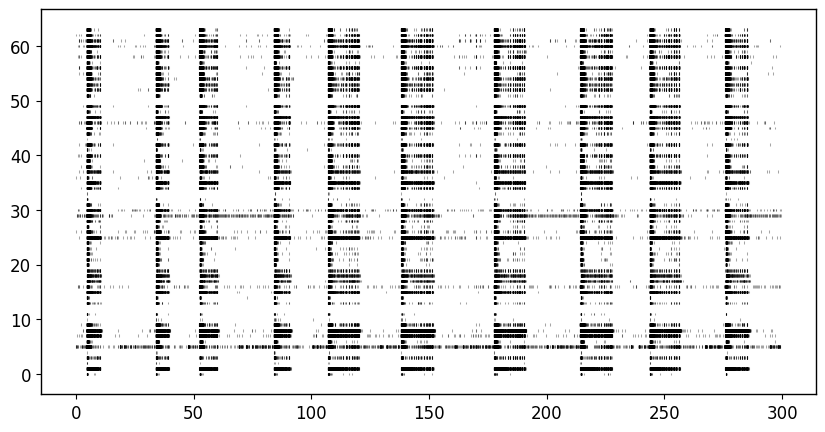

raster = generate_raster(well_data, 300, channel_ids)

plt.figure(figsize=(10,5))
plt.rcParams.update({'font.size': 12})
plt.rc('axes', linewidth=1)
plt.eventplot(raster, color='black', linelengths=0.5, linewidths=0.75, alpha=0.35);

def calculate_pairwise_correlations(raster, duration, dt=0.005*pq.s):
  # Create an empty n x n matrix, where n is the number of channels
  sttc_m = np.ones((len(raster), len(raster))) * np.nan

  # Iterate through each channel, compute pairwise correlations, store in matrix in appropriate position
  for i, ch1 in enumerate(raster):
      for j, ch2 in enumerate(raster):
        ch1_spiketrain = neo.SpikeTrain(ch1, units="s", t_stop=duration)
        ch2_spiketrain = neo.SpikeTrain(ch2, units="s", t_stop=duration)
        sttc_m[i][j] = spike_time_tiling_coefficient(ch1_spiketrain, ch2_spiketrain, dt)
  return sttc_m

sttc = calculate_pairwise_correlations(raster, duration=300*pq.s)

# Since correlation matrix is symmetrical, grab only the lower triangle to avoid repeat correlations
STTC_lt = np.tril(sttc, k=-1)
STTC_lt = np.where(STTC_lt < 0, np.nan, STTC_lt)

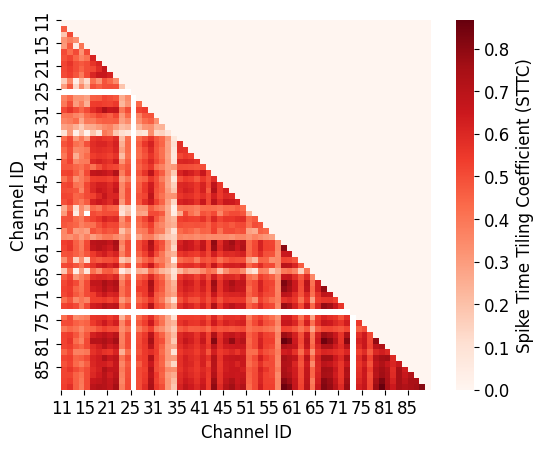

# Visualize
hm = sns.heatmap(STTC_lt,
            yticklabels=channel_ids, xticklabels=channel_ids,
            cmap=sns.color_palette("Reds",as_cmap=True), cbar=True,
            cbar_kws={'label': 'Spike Time Tiling Coefficient (STTC)'},
            square=True);
plt.xticks(range(0, len(channel_ids), 4), channel_ids[::4]);
plt.yticks(range(0, len(channel_ids), 4), channel_ids[::4]);
plt.xlabel("Channel ID")
plt.ylabel("Channel ID")

# Filter data so that nan and 0 values are removed.
flattened_nonzero_STTC = [x for x in STTC_lt.flatten() if (x != 0) & (~np.isnan(x))]

# Visualize and descriptive statistics

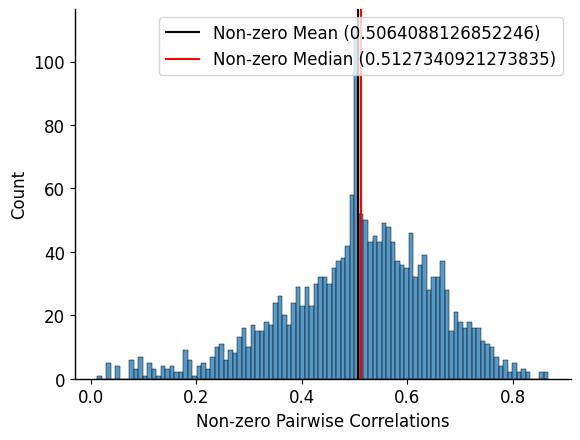

sns.histplot(data=flattened_nonzero_STTC, bins=100)
plt.xlabel("Non-zero Pairwise Correlations")
plt.axvline(np.nanmean(flattened_nonzero_STTC), color='black')
plt.axvline(np.nanmedian(flattened_nonzero_STTC), color='red')
plt.legend([f"Non-zero Mean ({np.nanmean(flattened_nonzero_STTC)})",f"Non-zero Median ({np.nanmedian(flattened_nonzero_STTC)})"])
sns.despine()

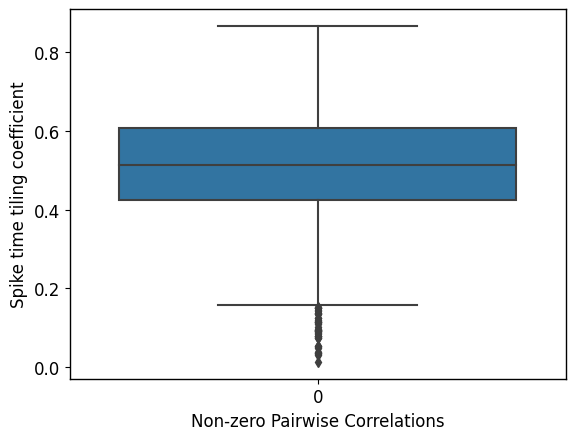

sns.boxplot(data=flattened_nonzero_STTC)
plt.xlabel("Non-zero Pairwise Correlations")
plt.ylabel("Spike time tiling coefficient")

THRESHOLD = np.quantile(flattened_nonzero_STTC, 0.75) # Gets 3rd quartile (i.e., end of IQR)
print(f"We will be using a correlation threshold of {THRESHOLD}")

'''
Replace values that didn't meet the threshold to 0. Ideally, you convert them to
nan values, but for some reason,t for some reason the connectivity circle handles
nan values as very large numbers and throws off the n_lines parameter, such that
you need to plot many more lines than needed.
'''
STTC_threshold = np.where(STTC_lt < THRESHOLD, 0, STTC_lt)

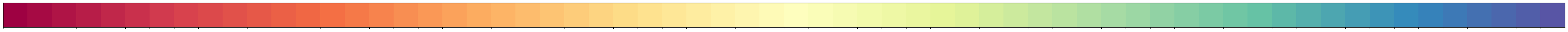

# Create color palette that will be used to visualize spatial position of electrodes
palette = sns.color_palette("Spectral",512)
palette1 = [palette[i] for i in np.arange(1,512,8)]
sns.palplot(palette1)

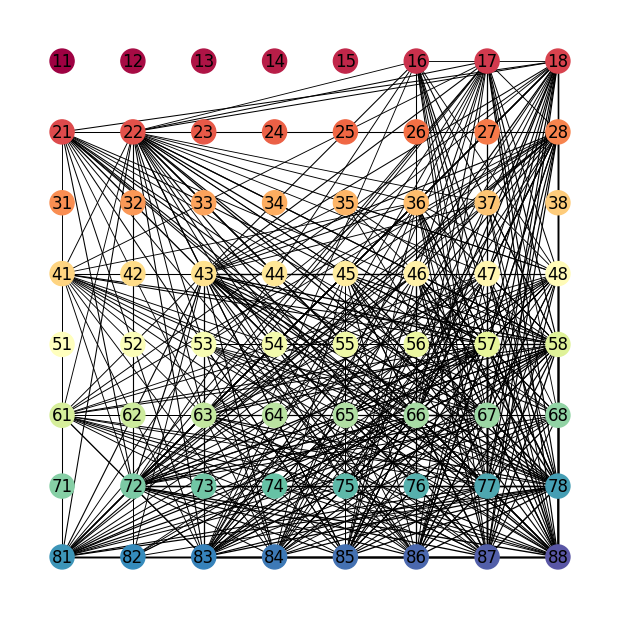

# Create a graph object
plt.figure(figsize=(6,6))
G = nx.Graph()

# Add nodes to the graph
for i in range(64):
  G.add_node(i)

# Add edges to the graph based on the correlations
for i in range(64):
  for j in range(64):
    if i != j:
      correlation = STTC_threshold[i, j]
      if correlation >= THRESHOLD: # Only add node if value passes threshold (probably don't need this anymore)
        G.add_edge(i, j, weight=correlation)
weights = nx.get_edge_attributes(G,'weight').values()
weights = [(w-0.29)*2 for w in list(weights)]

# Create a layout for the graph as a 4x4 grid
pos = {}
for i in range(8):
  for j in range(8):
    pos[i * 8 + j] = (j, -i)

# Create label map with electrode names
mapping = {old_label: new_label for old_label, new_label in zip(G.nodes(), channel_ids)}

# Draw the graph using the grid layout
nx.draw(G, pos, labels=mapping, node_color=palette1,
        with_labels=True, font_color='black', width=weights)

# Display the graph
plt.axis('off')

node_order = list()
node_order.extend(channel_ids)
# This will format the grid. Group boundaries separates distinct rows in this data
node_angles = circular_layout(channel_ids, node_order, start_pos=90, group_boundaries=[0, 8, 16, 24, 32, 40, 48, 56])
fig, ax = plt.subplots(figsize=(8, 8), facecolor='black',
                        subplot_kw=dict(polar=True))

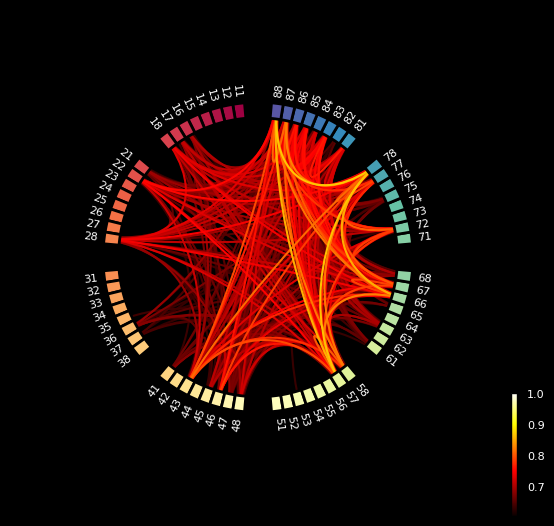

# Plots the top 500 strongest connections
plot_connectivity_circle(STTC_threshold, channel_ids, vmin=THRESHOLD, vmax=1, n_lines=500,
                          node_angles=node_angles, interactive=True,
                          textcolor='white',
                          ax=ax)

# Calculates a matrix of distances that maps onto the same nxn matrix of correlations
def calculate_distance(electrode_spacing=150, channel_ids=None, electrode_diameter=50):
    '''
    Each well contains 64 electrodes arranged in an 8x8 grid.
    Electrode spacing: 150um
    Electrode diameter: 50um
    Recording area: 1.1mm x 1.1mm
    '''
    distance = []
    for ch1 in channel_ids:
        ch1_x = int(str(ch1)[0])
        ch1_y = int(str(ch1)[1])
        for ch2 in channel_ids:
            ch2_x = int(str(ch2)[0])
            ch2_y = int(str(ch2)[1])
            distance_tmp = np.sqrt((ch2_x-ch1_x)**2 + (ch2_y-ch1_y)**2) * electrode_spacing
            distance.append(distance_tmp)
    distance = np.reshape(distance, (int(np.sqrt(len(distance))),int(np.sqrt(len(distance)))))
    return distance

MEA_distances = calculate_distance(channel_ids=channel_ids)

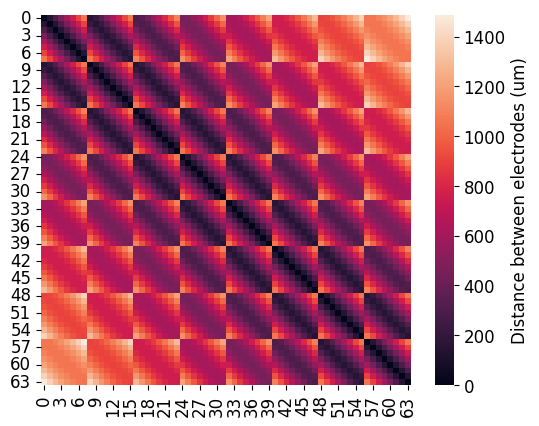

sns.heatmap(MEA_distances,
            cbar=True, cbar_kws={'label': 'Distance between electrodes (um)'},
            square=True)

# Create a data frame with all the STTCs associated with appropriate distance.
# This data frame makes it easier to plot later, especially once you have other variables that act as groups
distance = MEA_distances.flatten()
flattened_STTC = STTC_lt.flatten() # I am going to use the original STTC (using filtered STTC was only for visualization purposes)
if len(distance) == len(flattened_STTC):
  print(f"Both arrays have matching lengths")
else:
  print(f"Array length mismatch - check how the MEA distances are calculated. Likely incorrect channel_ids")

STTC_distances = pd.DataFrame({"Distance": distance, "STTC": flattened_STTC})
STTC_distances.dropna(inplace=True)
STTC_distances.tail()

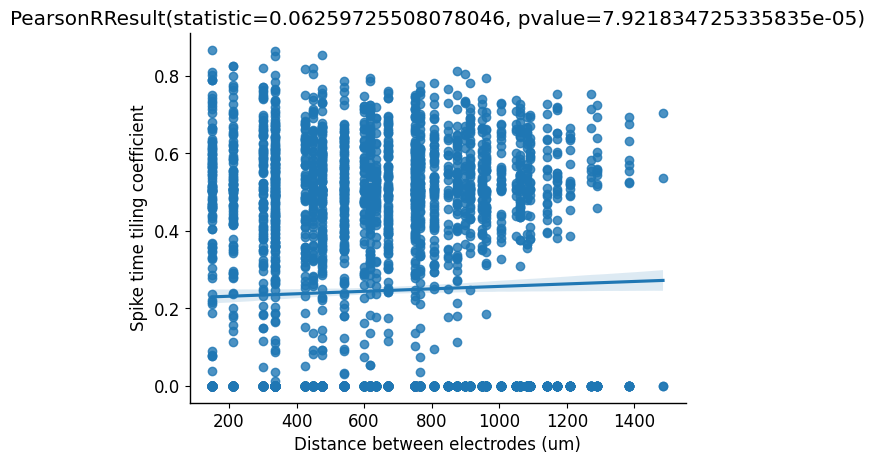

sns.regplot(data=STTC_distances[STTC_distances["Distance"]!=0], x="Distance", y="STTC")
pearsonr = pearsonr(STTC_distances["Distance"], STTC_distances["STTC"])
plt.xlabel("Distance between electrodes (um)")
plt.ylabel("Spike time tiling coefficient")
plt.title(pearsonr)
sns.despine()
