MaxInterval Burst Detection Algorithm (Python/Matlab)

Demo
Python Project Link
Matlab Project Links

A Max Interval (MI) burst detection algorithm was created to identify individual bursts. MI is a fixed threshold-based method for identifying bursts that uses five fixed threshold parameters (maximum ISI at start of the burst, maximum ISI in burst, minimum burst duration, minimum IBI, and minimum number of spikes within burst) to identify, merge, and exclude potential bursts. The values for these parameters are chosen a priori.

The algorithm is separated into three phases:

Burst detection – where a burst is defined as starting when two consecutive spikes have an ISI less than the maximum ISI at start of the burst. The end of the burst is determined when two spikes have an ISI greater than the maximum ISI in burst. The last spike of the previous burst and the first spike of the current burst will be used to calculate the IBI. For the first burst, there is no previous IBI.
Merge bursts – any pair of bursts that have an IBI less than the minimum IBI will be merged into a single burst.
Quality control – removes any small burst less than the minimum burst duration or has less than minimum number of spikes in burst. This step can potentially delete all spikes. The bursts are stored in a MATLAB cell array to permit detailed analysis of burst dynamics.

Import libraries

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.patches import Rectangle

Load data

spiketrain = pd.read_csv("/content/drive/MyDrive/spiketrain_example.csv")

spiketrain.head()

	Unnamed: 0	Time (s)
0	0	1.35040
1	1	1.52336
2	2	1.56696
3	3	2.59712
4	4	2.74472

Visualize data

Data are spike times of action potentials detected by a single electrode.

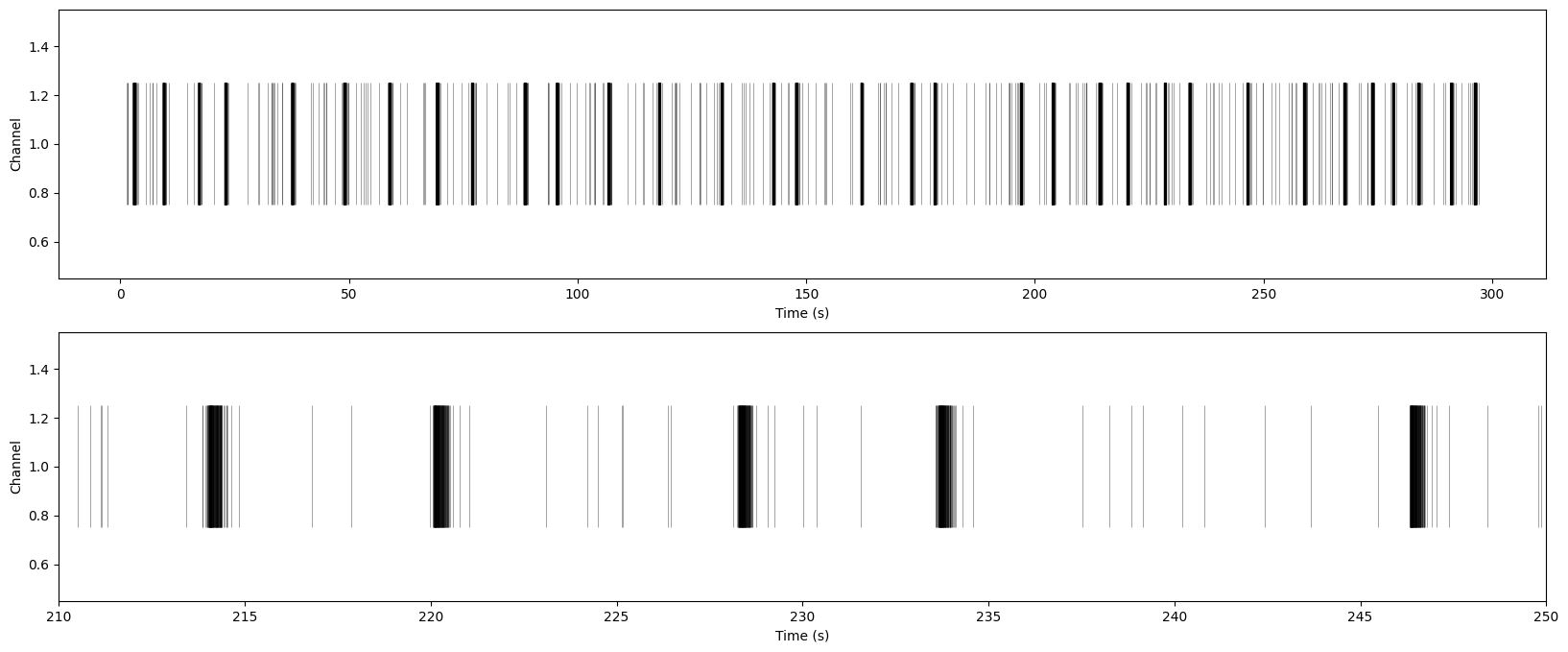

f = plt.figure(figsize=(20, 8), constrained_layout=False)
grid = f.add_gridspec(2, 3)
plt.subplot(grid[0,0:3])
plt.eventplot(spiketrain["Time (s)"], color='black', linelengths=0.5, linewidths=0.75, alpha=0.35)
plt.ylabel("Channel")

plt.subplot(grid[1,0:3])
plt.eventplot(spiketrain["Time (s)"], color='black', linelengths=0.5, linewidths=0.75, alpha=0.35)
plt.xlabel("Time (s)")
plt.ylabel("Channel")
plt.xlim([210,250])

(210.0, 250.0)

Max Interval Burst Detection

A Python- based Max Interval (MI) burst detection algorithm was created to identify individual bursts. MI is a fixed threshold-based method for identifying bursts that uses five fixed threshold parameters (maximum ISI at start of the burst, maximum ISI in burst, minimum burst duration, minimum IBI, and minimum number of spikes within burst) to identify, merge, and exclude potential bursts. The values for these parameters are chosen a priori.

def maxInterval(spiketrain, max_begin_ISI=0.17, max_end_ISI=0.3, min_IBI=0.2, min_burst_duration=0.01,
                min_spikes_in_burst=3):
    allBurstData = {}

    '''
    Phase 1 - Burst Detection
    Here a burst is defined as starting when two consecutive spikes have an
    ISI less than max_begin_ISI apart. The end of the burst is given when two
    spikes have an ISI greater than max_end_ISI.
    Find ISIs closer than max_begin_ISI and end with max_end_ISI.
    The last spike of the previous burst will be used to calculate the IBI.
    For the first burst, there is no previous IBI.
    '''
    inBurst = False
    burstNum = 0
    currentBurst = []
    for n in range(1, len(spiketrain)):
        ISI = spiketrain[n] - spiketrain[n - 1]
        if inBurst:
            if ISI > max_end_ISI:  # end the burst
                currentBurst = np.append(currentBurst, spiketrain[n - 1])
                allBurstData[burstNum] = currentBurst
                currentBurst = []
                burstNum += 1
                inBurst = False
            elif (ISI < max_end_ISI) & (n == len(spiketrain) - 1):
                currentBurst = np.append(currentBurst, spiketrain[n])
                allBurstData[burstNum] = currentBurst
                burstNum += 1
            else:
                currentBurst = np.append(currentBurst, spiketrain[n - 1])
        else:
            if ISI < max_begin_ISI:
                currentBurst = np.append(currentBurst, spiketrain[n - 1])
                inBurst = True
    # Calculate IBIs
    IBI = []
    for b in range(1, burstNum):
        prevBurstEnd = allBurstData[b - 1][-1]
        currBurstBeg = allBurstData[b][0]
        IBI = np.append(IBI, (currBurstBeg - prevBurstEnd))

    '''
    Phase 2 - Merging of Bursts
    Here we see if any pair of bursts have an IBI less than min_IBI; if so,
    we then merge the bursts. We specifically need to check when say three
    bursts are merged into one.
    '''
    tmp = allBurstData
    allBurstData = {}
    burstNum = 0
    for b in range(1, len(tmp)):
        prevBurst = tmp[b - 1]
        currBurst = tmp[b]
        if IBI[b - 1] < min_IBI:
            prevBurst = np.append(prevBurst, currBurst)
        allBurstData[burstNum] = prevBurst
        burstNum += 1
    if burstNum >= 2:
        allBurstData[burstNum] = currBurst

    '''
    Phase 3 - Quality Control
    Remove small bursts less than min_bursts_duration or having too few
    spikes less than min_spikes_in_bursts. In this phase we have the
    possibility of deleting all spikes.
    '''
    tooShort = 0
    tmp = allBurstData
    allBurstData = {}
    burstNum = 0
    if len(tmp) > 1:
        for b in range(len(tmp)):
            currBurst = tmp[b]
            if len(currBurst) <= min_spikes_in_burst:
                tooShort +=1
            elif currBurst[-1] - currBurst[0] <= min_burst_duration:
                tooShort += 1
            else:
                allBurstData[burstNum] = currBurst
                burstNum += 1

    return allBurstData, tooShort

Detect Bursts

allBurstData, _ = maxInterval(spiketrain["Time (s)"].values)

print(f"MaxInterval detected {len(allBurstData)} bursts.")

MaxInterval detected 35 bursts.

Plot the results

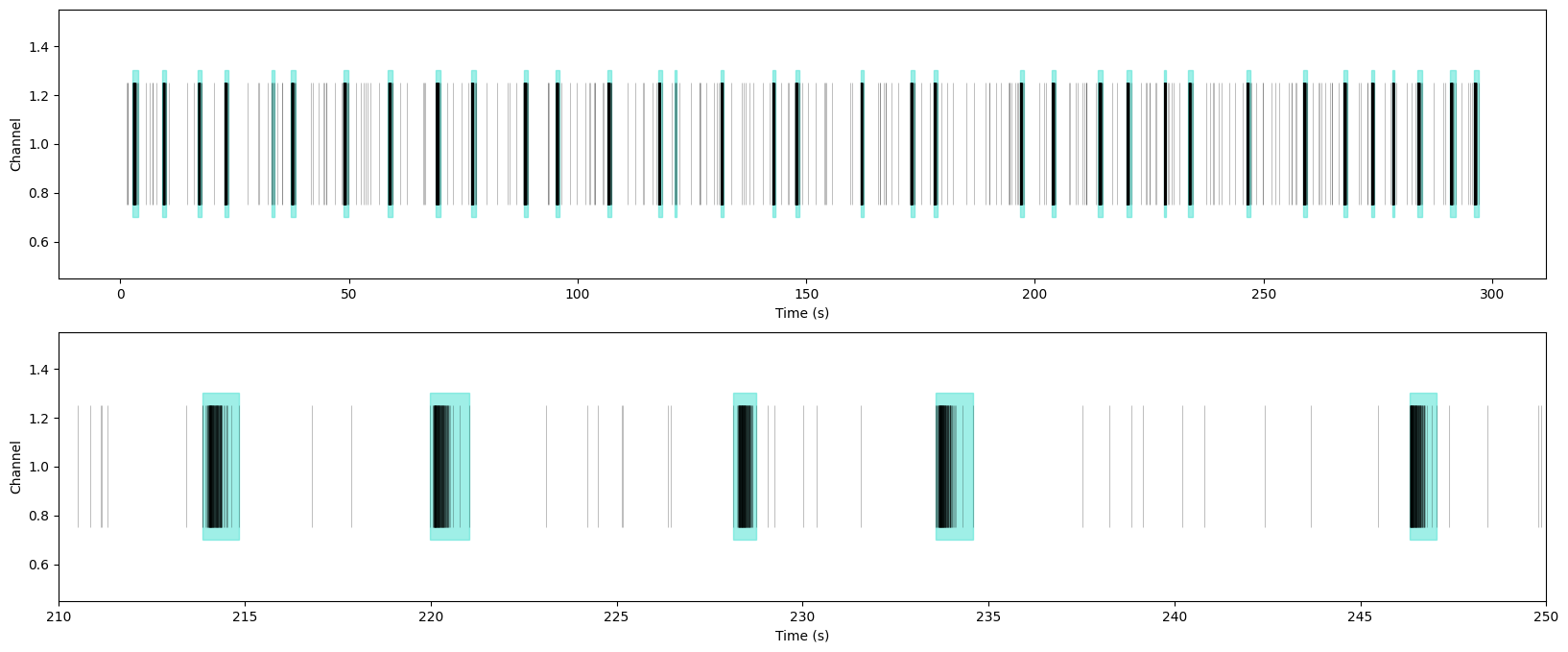

f = plt.figure(figsize=(20, 8), constrained_layout=False)
grid = f.add_gridspec(2, 3)
plt.subplot(grid[0,0:3])
plt.eventplot(spiketrain["Time (s)"], color='black', linelengths=0.5, linewidths=0.75, alpha=0.25)
for b in allBurstData:
    burst_start = allBurstData[b][0]
    burst_duration = allBurstData[b][-1]-burst_start
    rect = Rectangle((burst_start, 0.7), burst_duration, 0.6, alpha=0.5, edgecolor='turquoise', facecolor='turquoise')
    plt.gca().add_patch(rect)
plt.ylabel("Channel")

plt.subplot(grid[1,0:3])
plt.eventplot(spiketrain["Time (s)"], color='black', linelengths=0.5, linewidths=0.75, alpha=0.25)
for b in allBurstData:
    burst_start = allBurstData[b][0]
    burst_duration = allBurstData[b][-1]-burst_start
    rect = Rectangle((burst_start, 0.7), burst_duration, 0.6, alpha=0.5, edgecolor='turquoise', facecolor='turquoise')
    plt.gca().add_patch(rect)
plt.xlabel("Time (s)")
plt.ylabel("Channel")
plt.xlim([210,250])

(210.0, 250.0)

Calculate some basic burst features

# Inter-burst-interval
ibi = []
for b in range(len(allBurstData)-1):
  ibi.append(allBurstData[b+1][0]-allBurstData[b][-1])

# Burst duration
duration = [allBurstData[b][-1]-allBurstData[b][0] for b in range(len(allBurstData))]

plt.hist(ibi, bins=20, color='black')

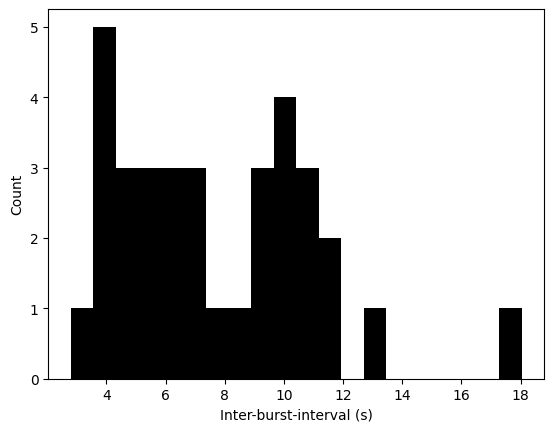

plt.xlabel("Inter-burst-interval (s)")
plt.ylabel("Count")

Text(0, 0.5, 'Count')

png

plt.hist(duration, bins=20, color='black')

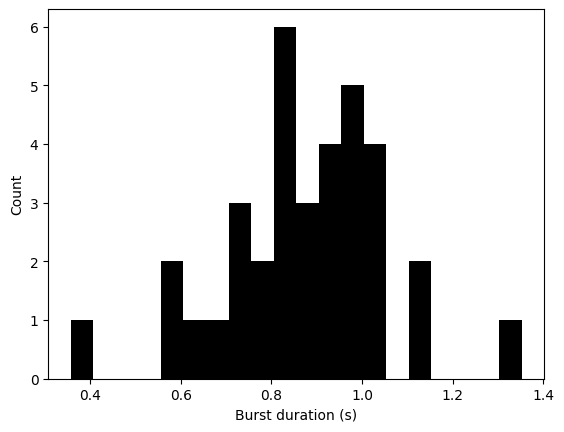

plt.xlabel("Burst duration (s)")
plt.ylabel("Count")

Text(0, 0.5, 'Count')

png

The hippocampus (HPC) and the lateral prefrontal cortex (LPFC) are two cortical areas of the primate brain deemed essential to cognition. Here, we hypothesized that the codes mediating neuronal communication in the HPC and LPFC microcircuits have distinctively evolved to serve plasticity and memory function at different spatiotemporal scales. We used a virtual reality task in which animals selected one of the two targets in the arms of the maze, according to a learned context-color rule. Our results show that during associative learning, HPC principal cells concentrate spikes in bursts, enabling temporal summation and fast synaptic plasticity in small populations of neurons and ultimately facilitating rapid encoding of associative memories. On the other hand, layer II/III LPFC pyramidal cells fire spikes more sparsely distributed over time. The latter would facilitate broadcasting of signals loaded in short-term memory across neuronal populations without necessarily triggering fast synaptic plasticity.
